Dark Harbor
(Computer Model File)





Go to Dark Harbor Links

Subbimt a Comment


Again, the below rendering was created from the of the orginial designs Lines drawing and Table of Offsets using the popular marine design software package - Multisurf.

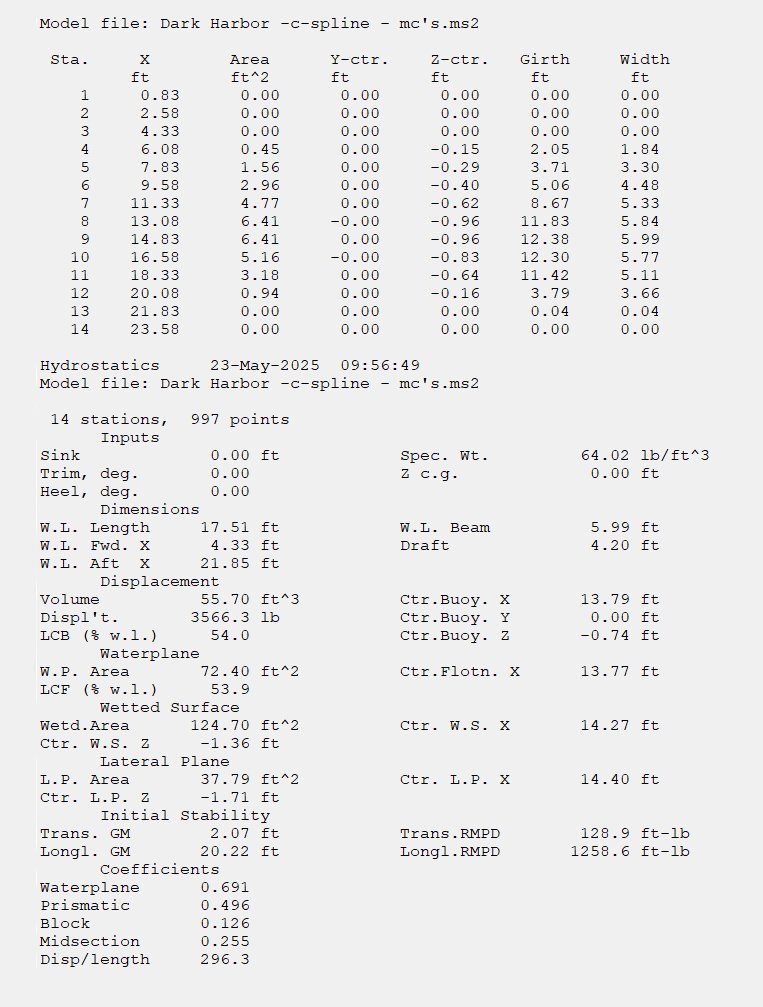

Static Hydrostatics

(Orginial version of Dark Harbor)


Since the Plans that I am working from dioes not include Engineering Data, since they are building only building plans.

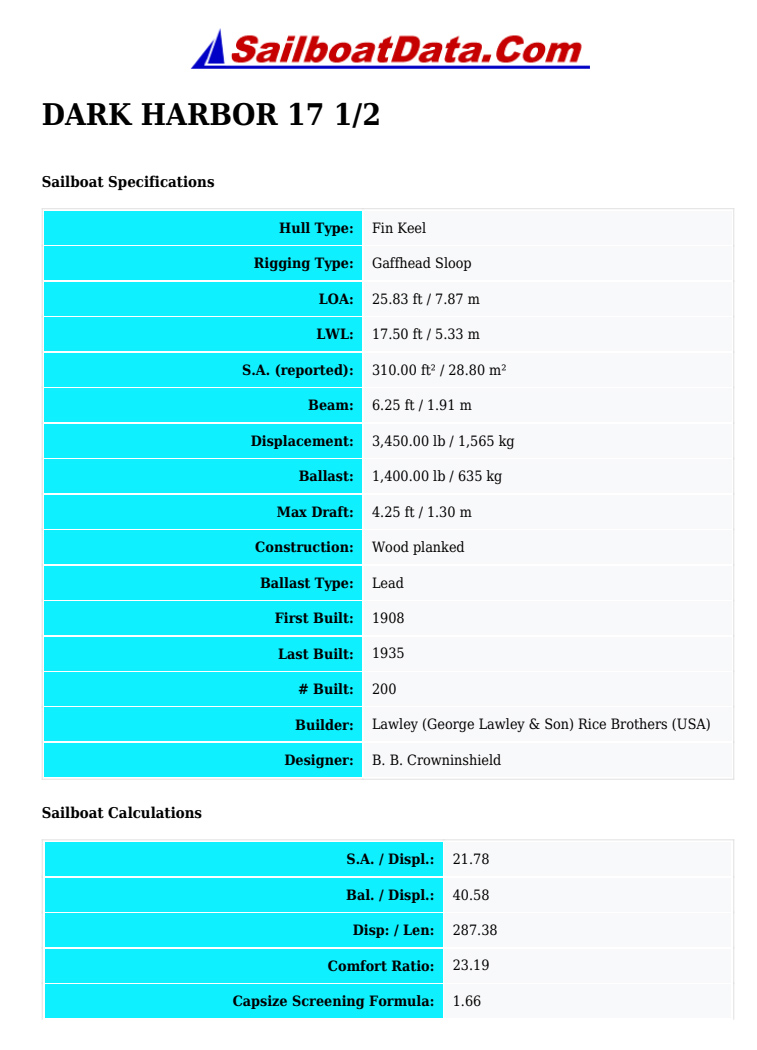

However at this  stage of the Re-Design I submit the following data for comparison I found at 'SailboatsData.com' to the My calculated Static Hydrostatics above that was obtain from the  computer Model File I created for the purpose of this Blog.

Feel free to search for more 'On Line' data if you would like to.  Drop me an email if you find anything.


Compare, for yourself, the 'Static Hydrostatic' calculated for Dark Harbor to the information given at SailbatData.com for:

  • Displacement
  • Design Waterline length
  • Maximum Draft
  • Length Overall
  • Displacement / Length Ratio
  • Displacement / Ballast Ratio
