Dark-Harbor-Sail-Ratios
(Gaff Rig Sailplan)

 Sail-Plan Ratio Descriptions


Go to Dark Harbor Links

Submit a Comment

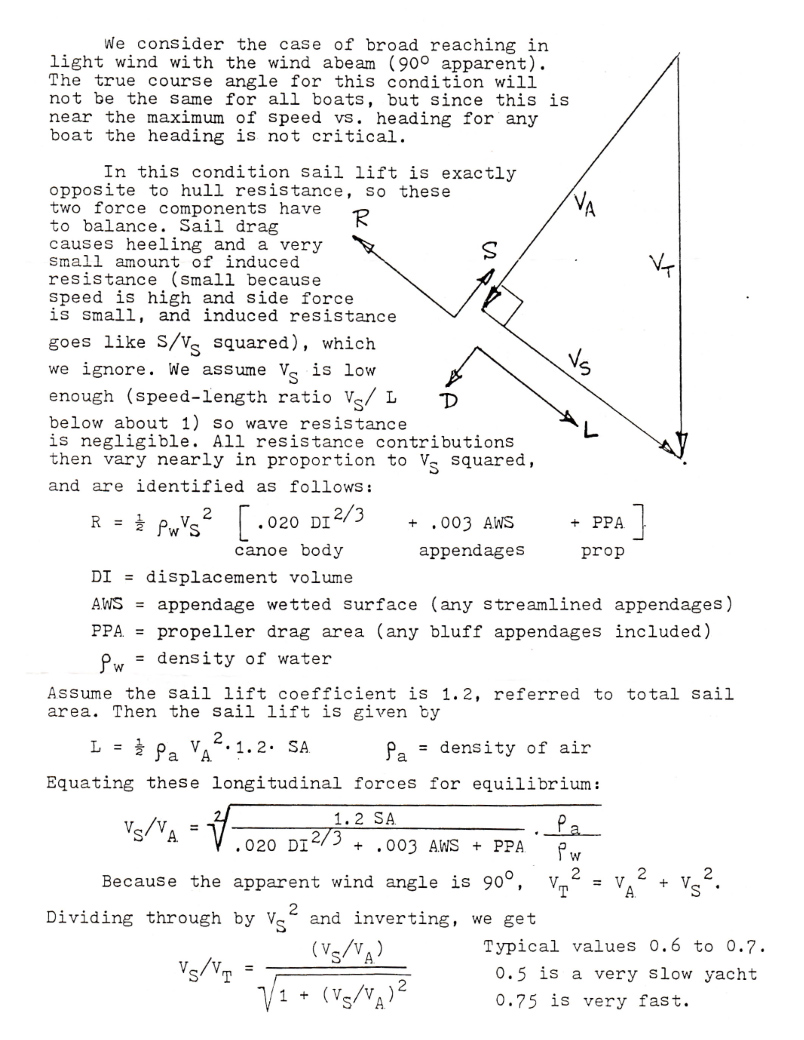

Vs/VT Theory

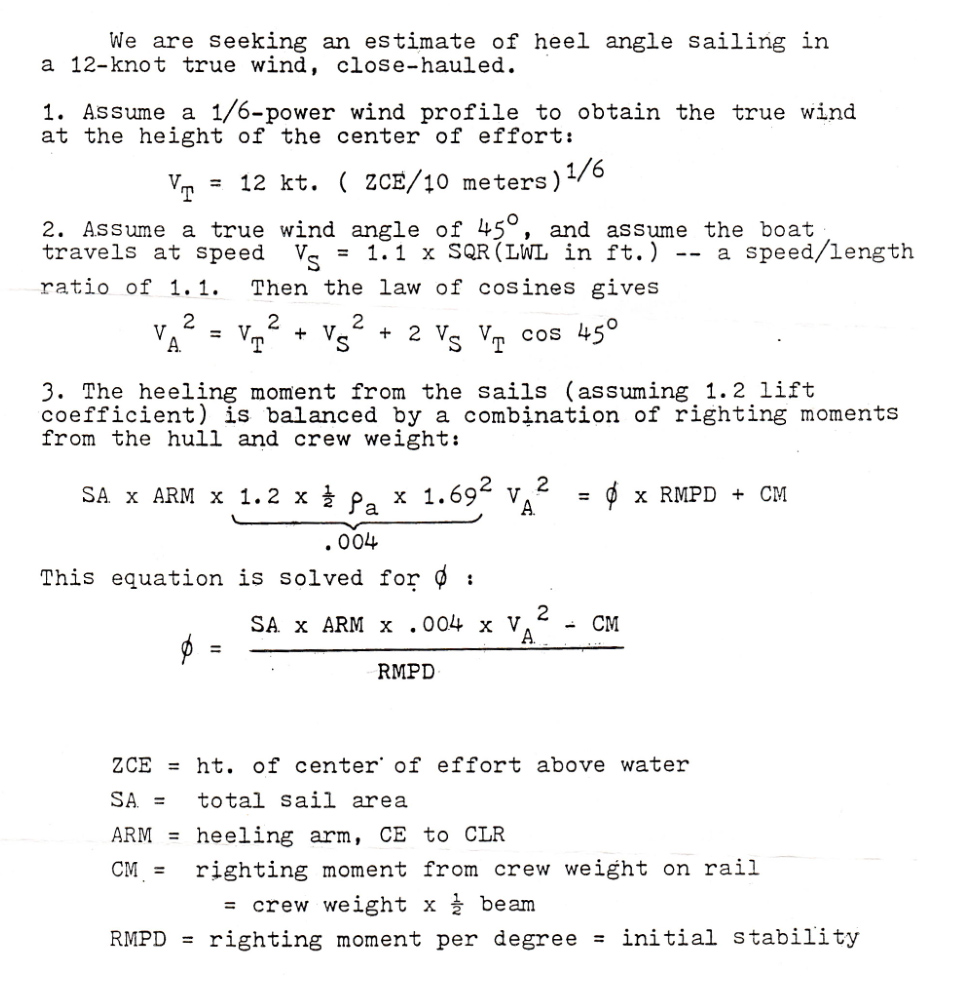

12 knot Heel Theory

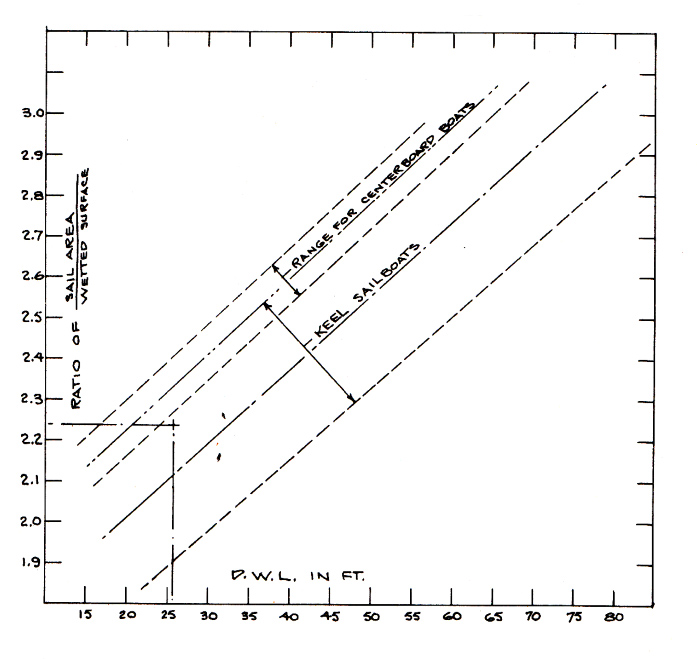

Sail Area/Wetted Surface

The crossing of a line drawn up from the DWL in Ft scale and a line drawn from the left scale will indicate Light Wind Performance.

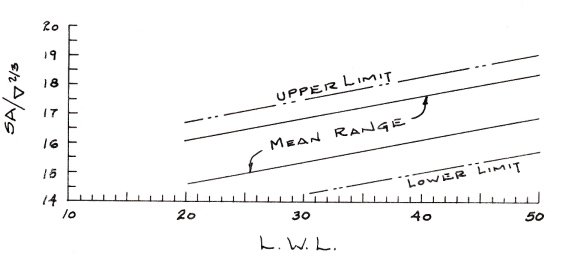

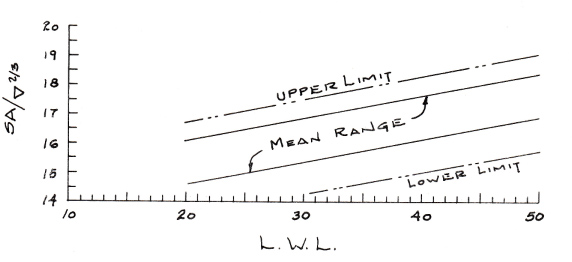

Sail Area/Displacement 2/3

The crossing of a line drawn up from the DWL in Ft scale and a line drawn from the left scale will indicate Normal Sailing Performance.

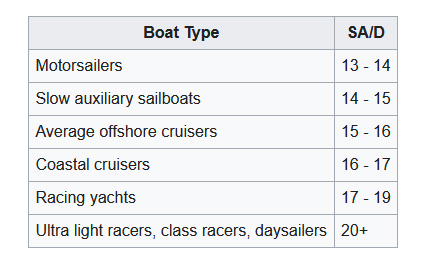

Also see the following chart which indicates the Design type.

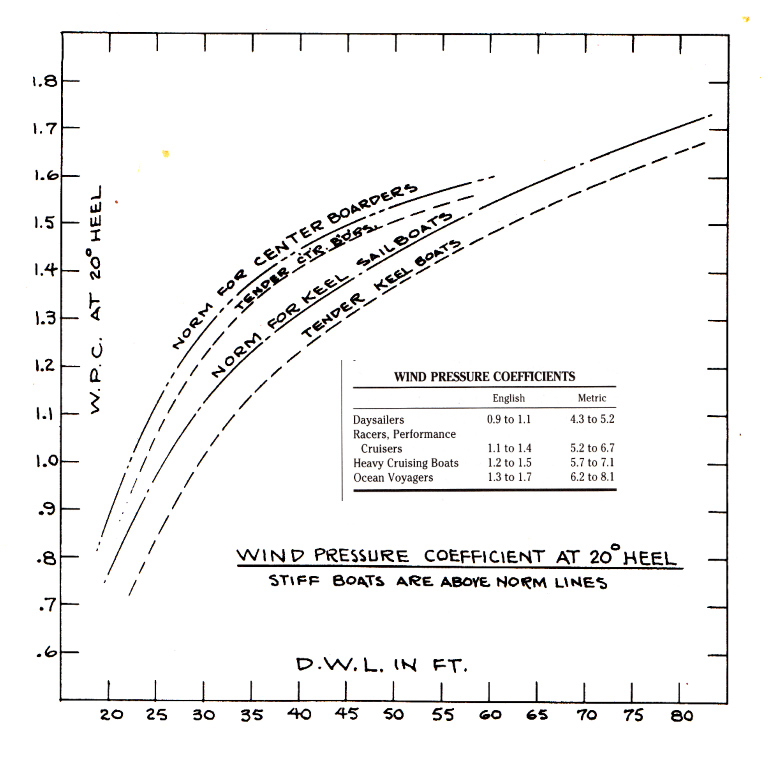

Wind Pressure Coefficent

The crossing of a line drawn up from the DWL in Ft scale and a line drawn from the WPC at 20-degrees scale will indicate the stiffness of the hull.

Also see the enclosed Wind Pressure Coefficients chart.

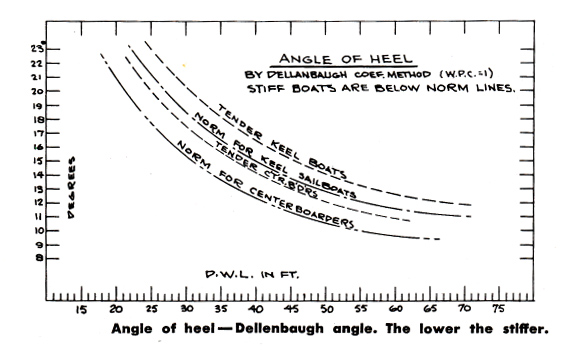

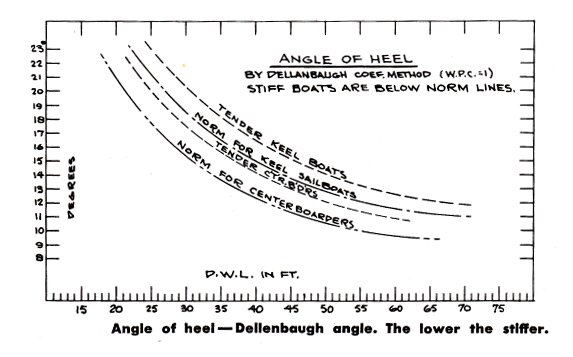

Dellanbaugh Angle

The crossing of a line drawn up from the DWL in Ft scale and a line drawn from the Dellanbaugh side scale scale will indicate the stiffness or tenderness of the hull.
